Diagnostic Lenses
Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of Capsulotomy Lens, Double Aspheric Lens, Gonio Lens, Iridotomy Lens, Vitrecomy Lens Set and Vitrectomy Irrigating Lens Set from Prayagraj.
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Diagnostic & Surgical Lenses,ND-YAG Laser Use In Posterior Capsulotomy And Anterior Vitreolysis |
| Overall Dimension | 56X76mm |
| Specialities | Easy To Use, Actual View Quality |
| Size | 15-30mm |
| Shape | Round |
| Magnification | +30D |

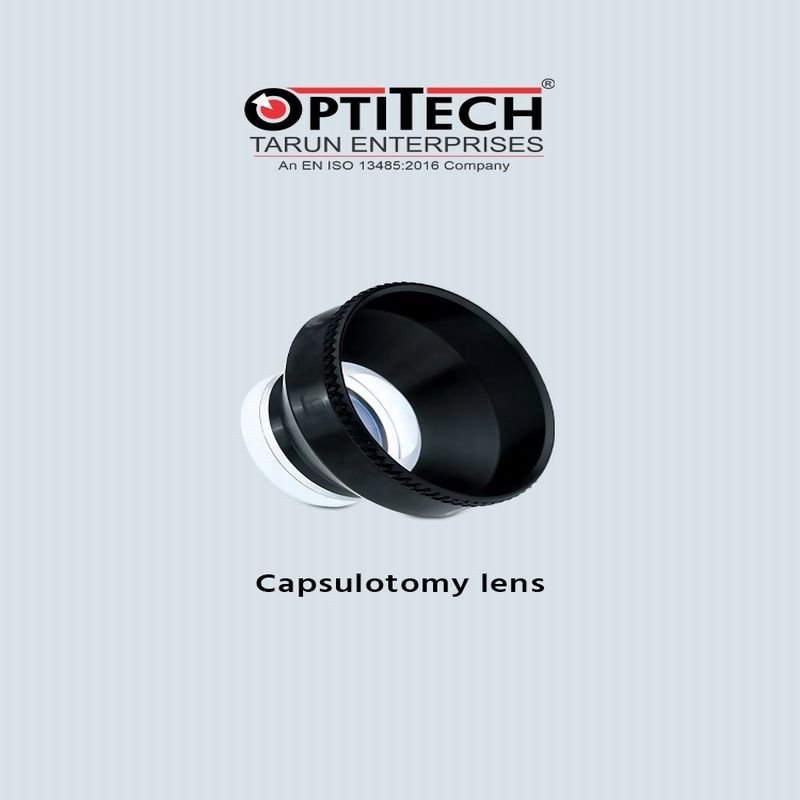

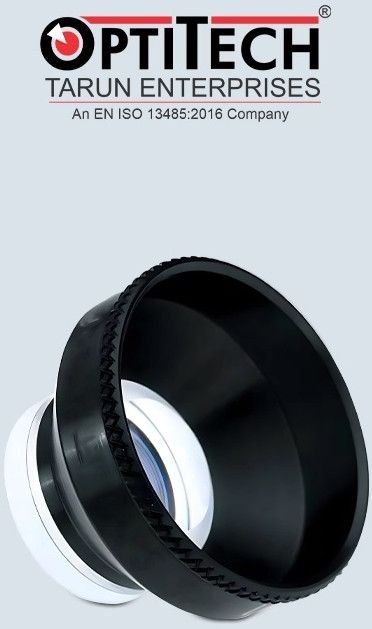

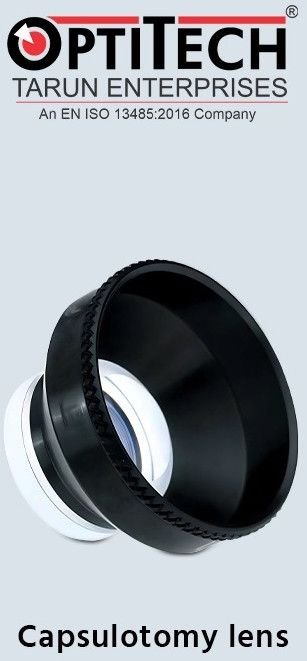

Capsulotomy Lens
Glass | +30D lens for ND-YAG laser use in posterior capsulotomy and anterior vitreolysis. Condenses laser energy; metal rim ensures easy handling
Specification:
- Product Code: Capsulotomy Lens
- Magnification: +30D
Description:
Glass | use with ND-YAG laser, posterior Capsulotomy and anterior vitreolysis. The +30D lens condenses the laser energy, the metal rim is easy to handle.
| Business Type | Manufacturer, Exporter, Supplier |
| Feature | Long Life, Safe And Very Effective |
| Type | Aspherical Lens,Ophthalmic Lens |
| Weight | 150-200 Gm |
| Material | Glass |
| Application | Detailed Fundus Examination And Retinal Diagnostics |
| Laser Spot | 100-1000 mm |
| Focal Length | 160mm |
| Thickness | 20mm |

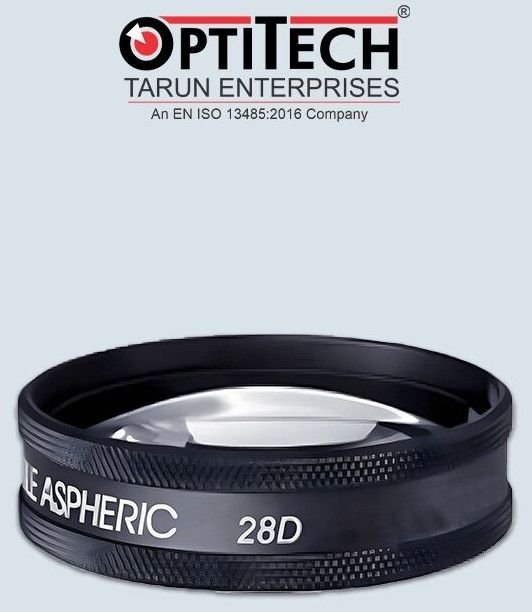

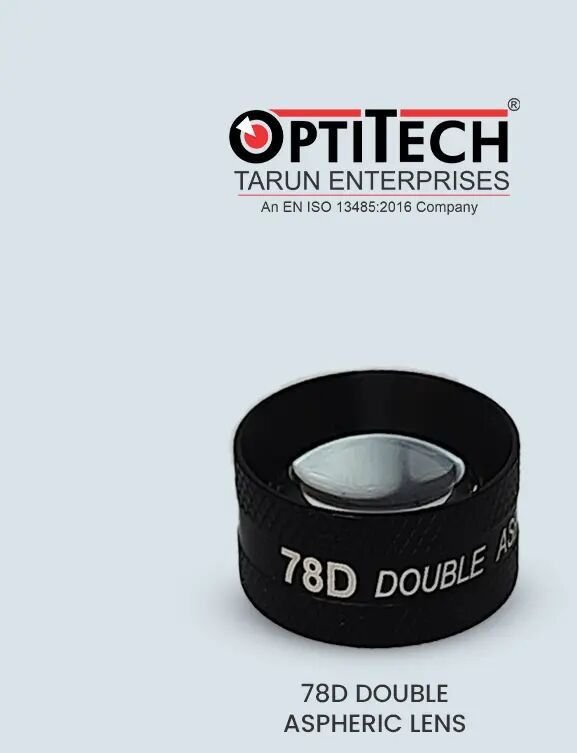

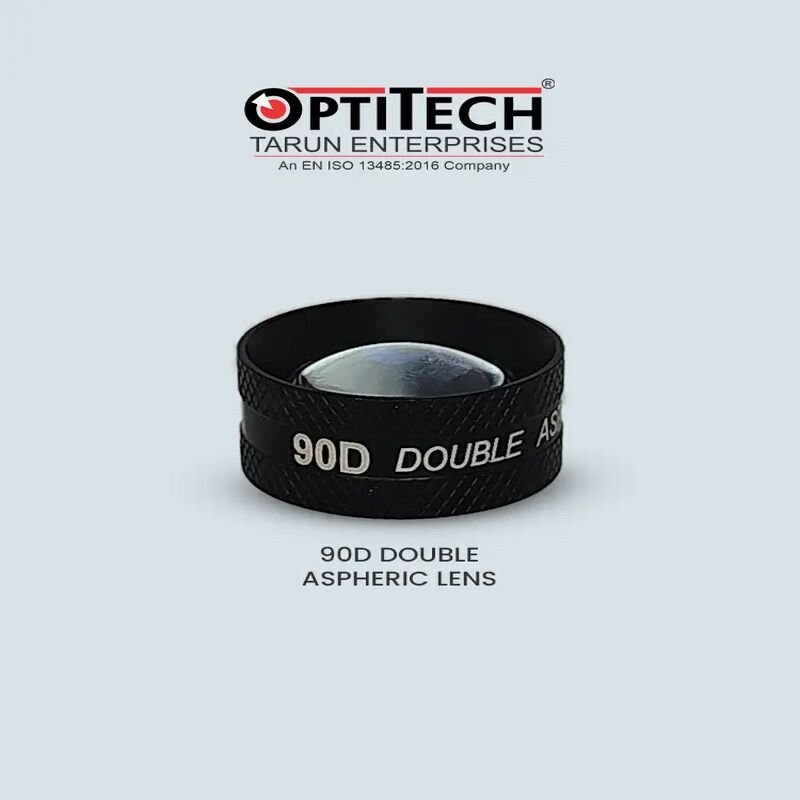

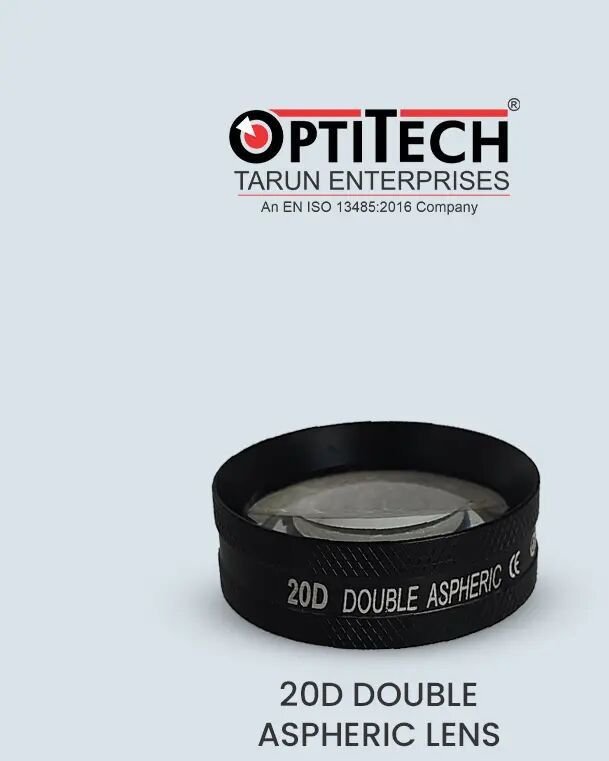

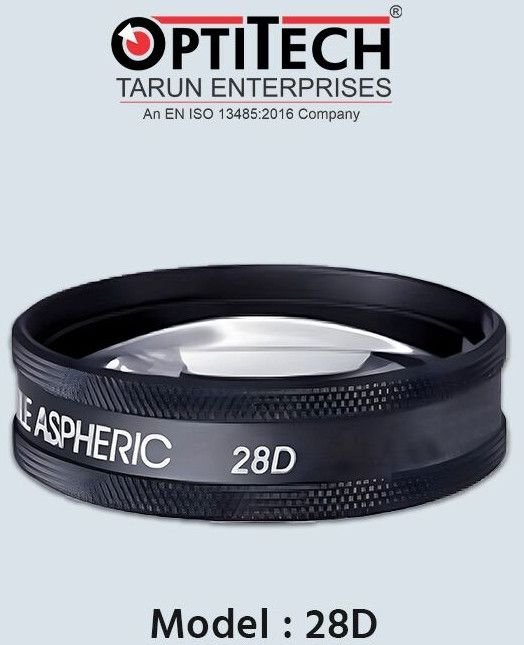

Double Aspheric Lens
Double Aspheric Lens (20D, 28 D, 78D, 90D, Double Aspheric) are ophthalmic lenses used for detailed fundus examination and retinal diagnostics.
Specification of 20D
- Product Code: 20DD
- Field of View: 46 / 60 Degree
- Working Distance: 50 mm
- Dia of Glass: 44 mm
Description:
20D DOUBLE ASPHERIC LENS Glass | Double Aspheric lens design with multi coating | an ideal for use with Indirect Ophthalmoscope for high resolution and field of view on retinal image. 78D DOUBLE ASPHERIC LENS Glass | Double Aspheric lens design with multi coating | an ideal Slitlamp examination lens, combination of magnification and field of view, it is providing extended working distance from cornea. 90D DOUBLE ASPHERIC LENS Glass | Double Aspheric lens design with multi coating | an ideal Slitlamp examination lens, combination of magnification and field of view, it is providing extended working distance from cornea.
| Business Type | Manufacturer, Exporter, Supplier |
| Specialities | Power Angle View, Easy To Use, Actual View Quality |
| Type | Contact Lens |
| Usage | Examine Anterior Chamber Angle Of The Eye For Glaucoma Diagnosi |
| Material | Glass |
| Mirror Angle | 62 Degree |
| Model | Single Mirror |
| View | 360 Degree |

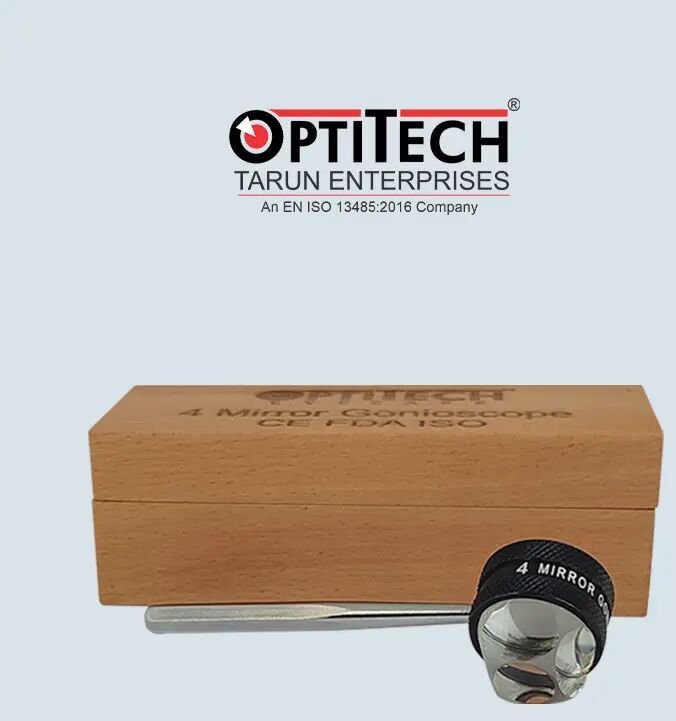

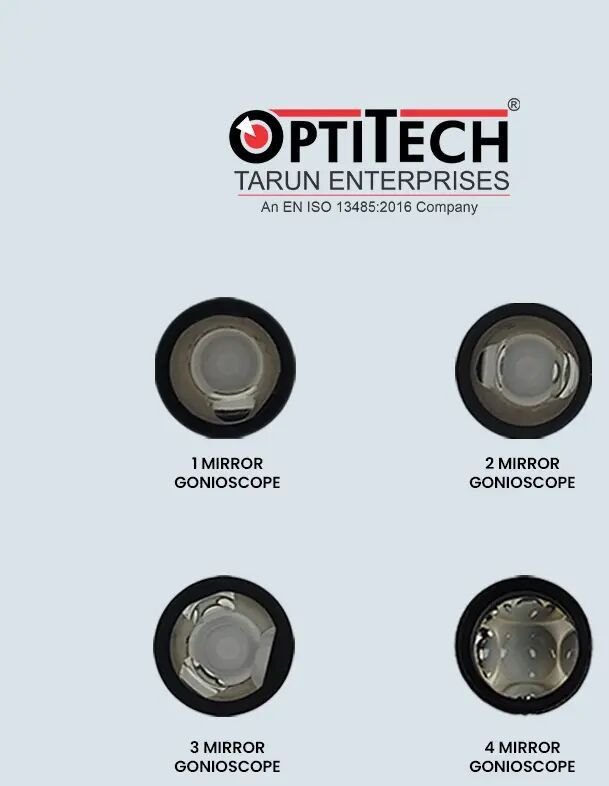

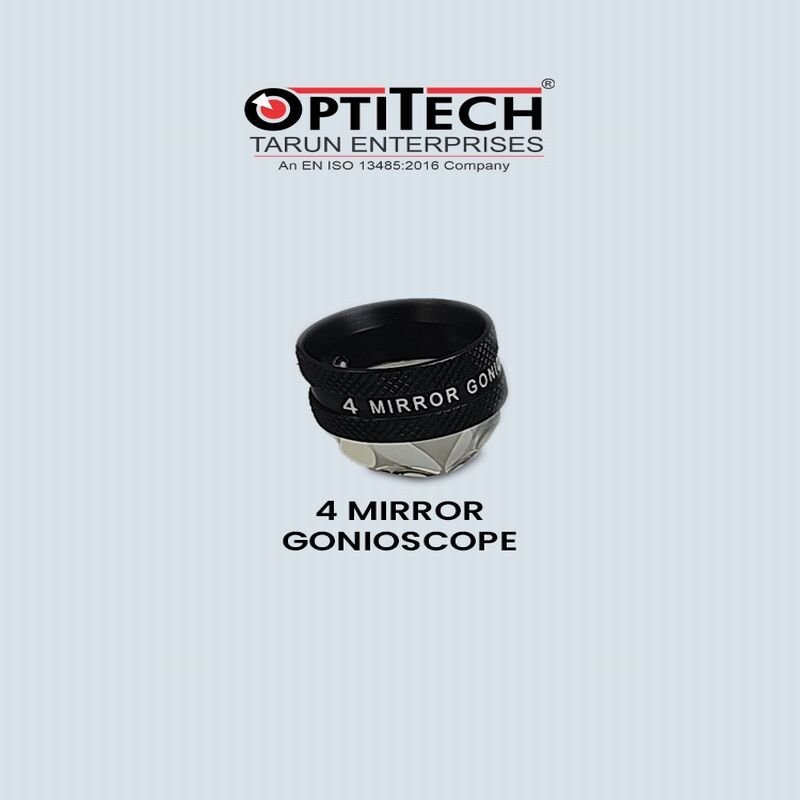

Gonio Lens
Gonio Lenses (Single, Two, Three, and Four Mirror) are specialized contact lenses used in ophthalmology to examine the anterior chamber angle of the eye, aiding in glaucoma diagnosis and management.
Model: Single Mirror
Specification of Single Mirror
- Product Code: 1M
- Mirror Angle: 62 Degree
- View: 360 Degree
Description:

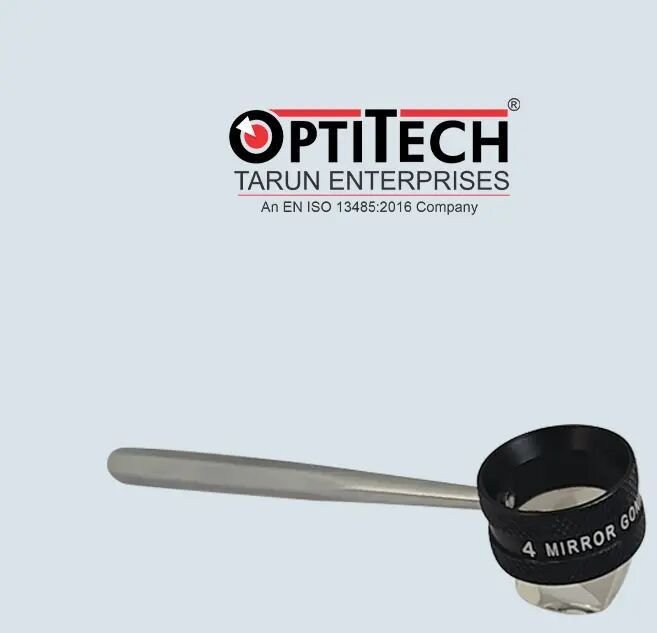

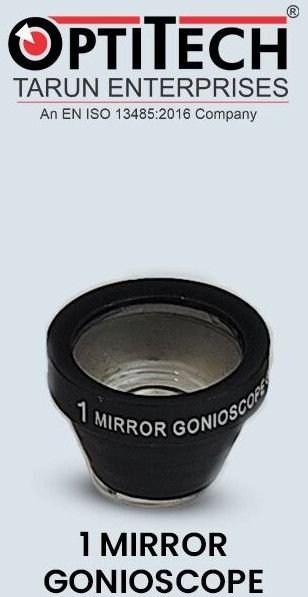

GONIO LENS SINGLE MIRROR Glass | a single mirror Gonioscope lens is easy to handle, gives clear view of the anterior chamber angle, in use for adults and children with small palpebral fissure. Contact medium required. GONIO LENS TWO MIRROR Glass | a two opposing inclined mirror Gonioscope lens is easy to handle, gives clear view of 360 degree when rotated 90 degree, in use for adults and children. Contact medium required. GONIO LENS THREE MIRROR Glass | a three mirror Gonioscope lens is easy to handle, with mirror positioning at 120 degree interval gives clear view of the anterior chamber and fundus, also view of posterior pole thru centra axis is possible. Contact medium required. GONIO LENS FOUR MIRROR Glass | detachable handle makes it ideal for diagnostic and dynamic Gonioscope. The 4 mirrors at 62 degree enable viewing all quadrants of the anterior chamber without rotation of the contact surface. No Contact medium required.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Modified Goldman-type Fundus Lens |
| Diameter | 7.50 Mm |
| Shape | Round |
| Specialities | Power Angle View, Easy To Use |
| Overall Dimension | 56X76mm |
| Material | Glass |
| Magnification | +70D |

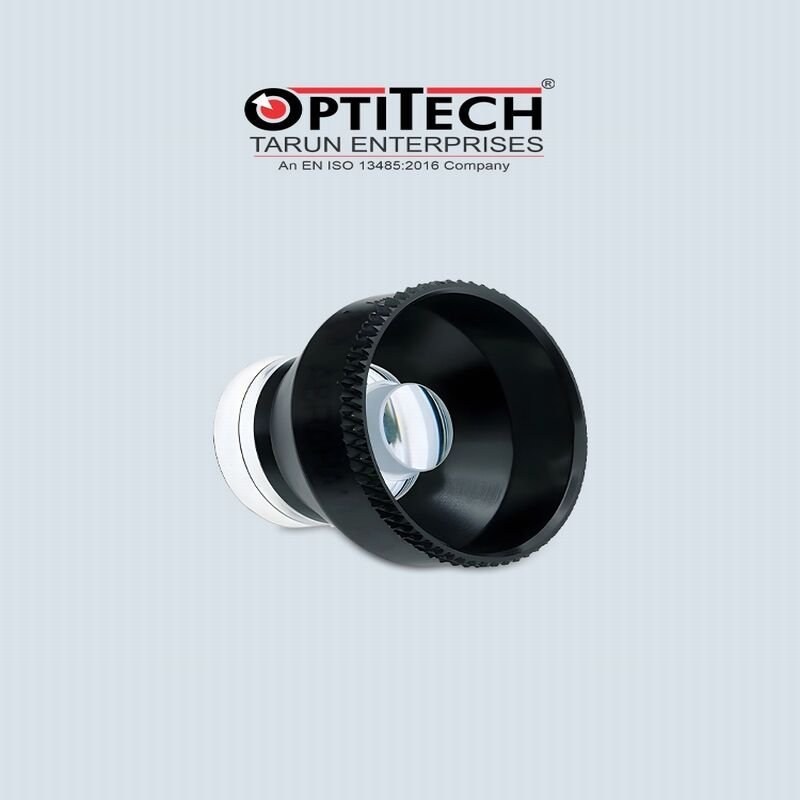

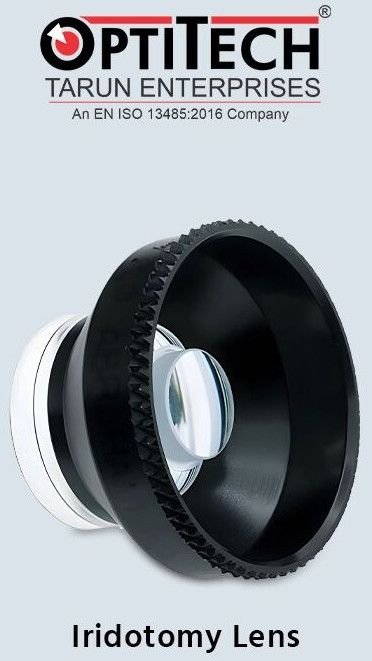

Iridotomy Lens
Glass | Modified Goldman-type fundus lens (7.5 mm, +70D plano-convex) that condenses laser energy for low-power procedures.
Specification:
- Product Code: Iridotomy Lens
- Magnification: +70D
- Diameter: 7.50 mm
Description:
Glass | It is a modification on Goldman type fundus lens with 7.50 mm diameter with +70D plano convex lens bonded to the anterior surface, helps condensing the laser energy so as the procedure can happen on low power setting
| Business Type | Manufacturer, Exporter, Supplier |
| Specialities | Power Angle View, Actual View Quality |
| Focal Length | 40mm |
| Type | Lens Set |
| Material | Silicone |
| Packaging Type | Silicone Container |
| Usage | Diagnostic & Surgical Lenses,Designed To Reduce The Need For A Trained Assistant |
| Size | 15-30mm |

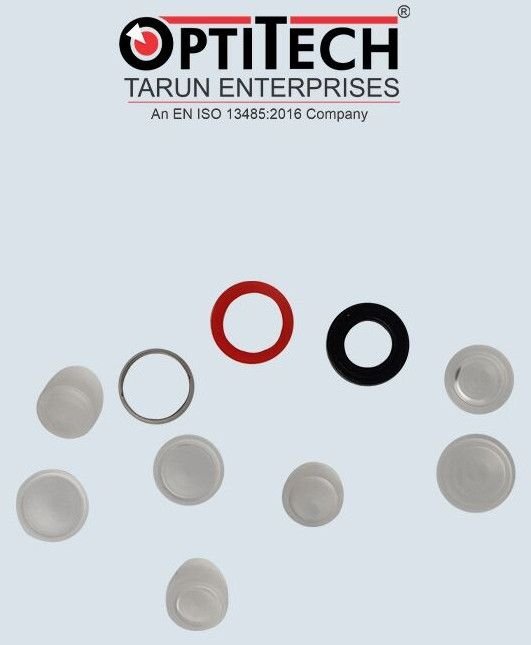

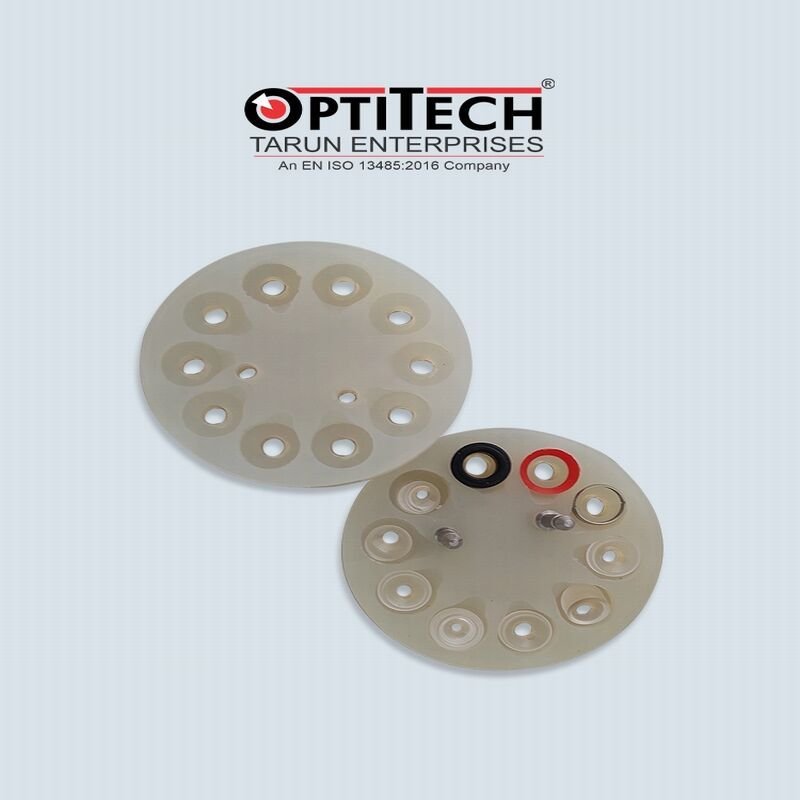

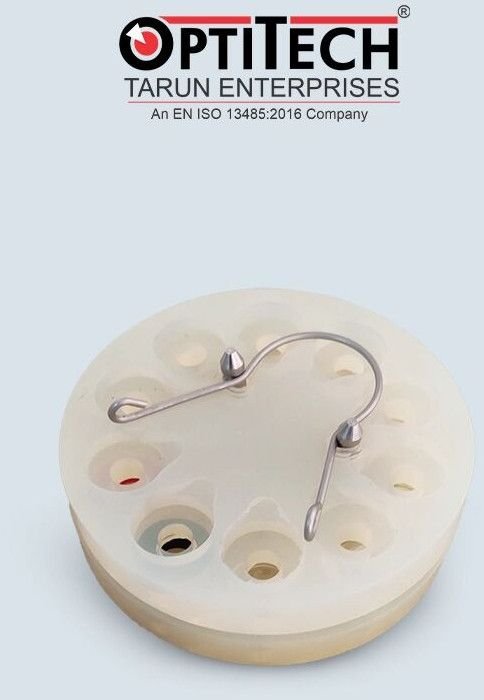

Vitrecomy Lens Set
A complete system with a concave contact lens and holding ring, designed to reduce the need for a trained assistant. Includes a silicone container for safe storage and sterilization.
Specification:
- Biconcave (-90D): Ref L1
- Prism 20 Degree: Ref L2
- Prism 30 Degree: Ref L3
- Biconcave Prism – Ref L4+
- Magnifying Lens: Ref L4+
- Wide Field: Ref L5
- Wide Field (Enhanced): Ref L5+
| Business Type | Manufacturer, Exporter, Supplier |
| Finishing | Polished Smooth |
| Material | Stainless Steel |
| Usage | Vitreoretinal Surgeries, Retina |
| Instrument Type | Cannula |
| Instrument Grade | Reusable |
| Autoclavable | Yes |
| Tip Type | Blunt |
| Handle Type | Ergonomic |

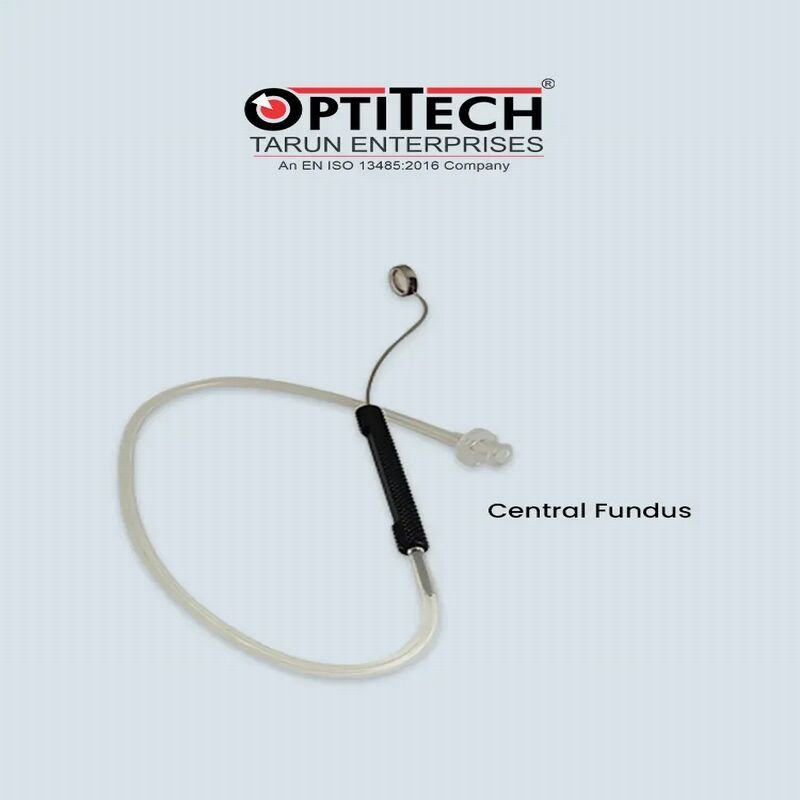

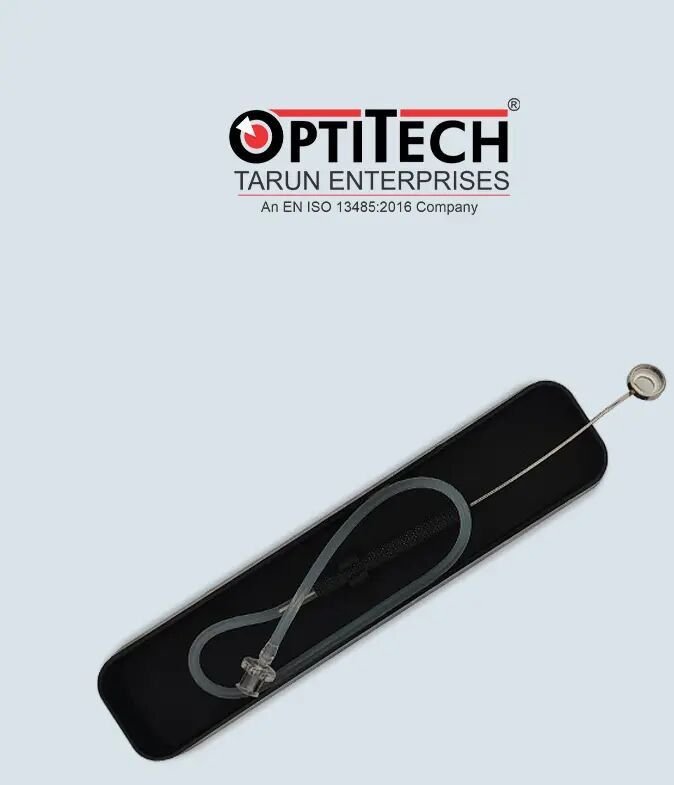

Vitrectomy Irrigating Lens Set

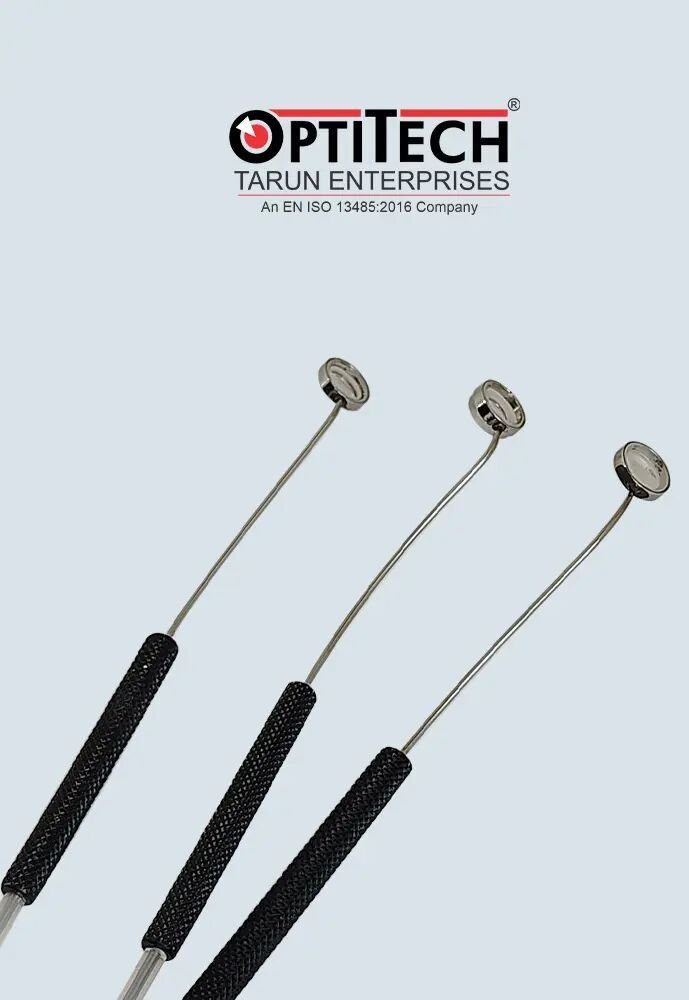

Glass | 3 lens set with handle. Provision to attach the infusion line for irrigation during surgery.
Description:
The Vitrectomy Irrigating Lens Set is a specialized ophthalmic surgical instrument designed for vitrectomy and retinal surgery. It includes a contact lens system that provides a clear, detailed view of the retina and vitreous cavity, helping surgeons perform precise vitreoretinal procedures.
